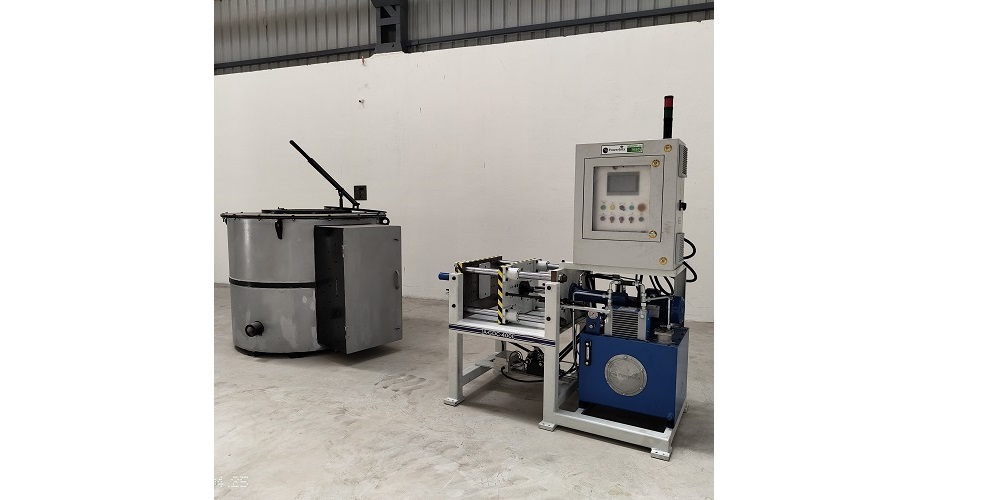

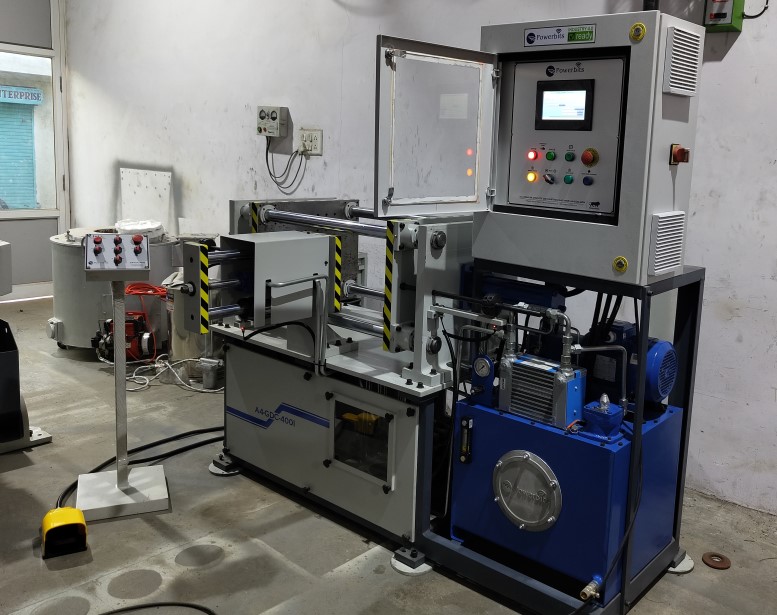

Gravity Die Casting Machine for Aluminium

Brief information about Machine

This machine is used for the casting of aluminium and aluminium alloys poured by gravity into the die, to obtain medium/large size casting or small size castings by using multi cavity dies.

The machine, being a new generation gravity die casting machine is designed taking into consideration operator safety and ergonomics.

Only one person can operate the machine with auto-cycle using only foot switch for operation reducing labour cost.

Efforts and Time required to remove the Metal Core or open Multi-sided Die are eliminated due to high power Hydraulic Cylinders to remove the Metal Core and Open the Die.

High dependency on specific skilled foundry labour will be eliminated giving high production rate with same casting quality as all the parameters are automated and no manual efforts are required other than pouring for Stationary GDC Machine.

Machine Specifications for Model Selection

SpecificationMax Die DimensionsMax Die WeightNumber of Axis

A-GDC-400i400 mm x 400 mm200 Kg2+1 - One Moving Die, One Ejection

A-GDC-X00iX00 mm x X00 mmX00 Kg2+1 - One Moving Die, One Ejection300 mm

SpecificationMax Die DimensionsMax Die WeightNumber of Axis

A3-GDC-400i400 mm x 400 mm200 Kg3+1 - Left Right and Top/Bottom/Front/Back

A3-GDC-X00iX00 mm x X00 mmX00 Kg3+1 - Left Right and Top/Bottom/Front/Back300 mm

SpecificationMax Die DimensionsMax Die WeightNumber of Axis

A4-GDC-400i400 mm x 400 mm200 Kg4+1 - Left Right and Top-Bottom/Front-Back

A4-GDC-X00iX00 mm x X00 mmX00 Kg4+1 - Left Right and Top-Bottom/Front-Back

SpecificationMax Die DimensionsMax Die WeightNumber of Axis

A6-GDC-400i400 mm x 400 mm200 Kg6+1 - Left Right, Top-Bottom,Front-Back

A6-GDC-X00iX00 mm x X00 mmX00 Kg6+1 - Left Right, Top-Bottom,Front-Back

Unique Features of Machine

Mechanical structure which is far more robust, with all vital parts mounted in accessible and protected positions.
The dipping tank is an independent unit which can be easily removed if necessary. Further during operation they are protected from sand grease and oil accidentally falling onto them.
The machine is supplied with variable displacement pump of one of the world leader of hydraulics, allowing to extend life of the pump and to be more efficient to reduce power consumption.
Hydraulic and electric components, cylinders and valves are also standard for easy replacement worldwide.
Machine comes with Optional Powerbits Industry 4.0 software for manufacturing analytics and smart factory. Third party solutions can also be easily integrated using ethernet connection.
Very Premium quality Hydraulic PowerUnit comparable to Global Quality.

Detailed Features of Machine

Metal Solidification time along with left and right die dipping time can be set in milliseconds.
Die closing is also adjustable according to the thickness of die easily.
Handy Emergency die open switch with two Emergency stop switches to consider safety first.
Hydraulic pump flow rate along with all Hydraulic cylinders movement speed can be adjusted easily.
Part count features to count the number of castings done.
Highly efficient Hydraulic Vane pump with high efficiency Motor for very low power consumption to reduce operating cost.
Die Opening and Closing sequence for the number of Metal Core or Die or Loose Punch easily from HMI.
Control Panel unit with acrylic glass for protection against foundry environment and dust.
